This event structure presents the output ROI parameters. More...

Data Fields
uint16_t	target_start_x
	The starting x coordinate of the LCM to update. More...

uint16_t	target_start_y
	The starting y coordinate of the LCM to update. More...

uint16_t	target_end_x
	The ending x coordinate of the LCM to update. More...

uint16_t	target_end_y
	The ending y coordinate of the LCM to update. More...

uint16_t	roi_offset_x
	The ROI window offset x from main window. More...

uint16_t	roi_offset_y
	The ROI window offset y from main window. More...

uint32_t	roi_background_color
	The background color of the ROI to update. More...

uint32_t	main_lcd_output
	The output format of the LCD engine to use. More...

Detailed Description

This event structure presents the output ROI parameters.

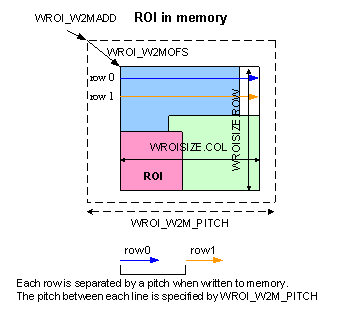

The ROI coordinates are shown below:

Field Documentation

uint32_t main_lcd_output

The output format of the LCD engine to use.

uint32_t roi_background_color

The background color of the ROI to update.

uint16_t roi_offset_x

The ROI window offset x from main window.

uint16_t roi_offset_y

The ROI window offset y from main window.

uint16_t target_end_x

The ending x coordinate of the LCM to update.

uint16_t target_end_y

The ending y coordinate of the LCM to update.

uint16_t target_start_x

The starting x coordinate of the LCM to update.

uint16_t target_start_y

The starting y coordinate of the LCM to update.

The documentation for this struct was generated from the following file:
