This section introduces the Real-Time Clock (RTC) APIs including terms and acronyms, supported features, software architecture, details on how to use this driver, enums, structures and functions. More...

Overview

This section introduces the Real-Time Clock (RTC) APIs including terms and acronyms, supported features, software architecture, details on how to use this driver, enums, structures and functions.

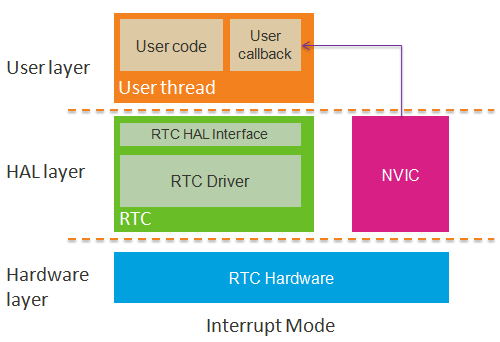

The software architecture of the RTC driver is shown in the diagram below.

Terms and acronyms

Terms	Details
RTC	Real-Time Clock. A real-time clock (RTC) is a computer clock, mostly in the form of an integrated circuit, that keeps track of the current time. For more information, please refer to an introduction to the RTC in Wikipedia .

Supported features

Support date and time information.
Call hal_rtc_set_time() to set the RTC current time and hal_rtc_get_time() to retrieve the RTC current time. Call hal_rtc_set_time_callback() to register a callback to receive RTC current time change notification. This notification will be triggered in precise RTC time unit configured(like every second, every minute, or every hour etc.). Call hal_rtc_set_time_notification_period() to set the desired notification period. Then your callback function will be periodically executed according to the period you set.
Support fine tuning of the RTC timer.
Call hal_rtc_set_repeat_calibration() to adjust the RTC time counting speed, if you have a highly accurate reference clock, or if you find out the RTC time is faster or slower. hal_rtc_set_one_shot_calibration() can be used to fine tune the current RTC time.
Support alarm notification.
Call hal_rtc_set_alarm() to set the RTC alarm time and hal_rtc_get_alarm() to get the RTC alarm time. To receive alarm notification, please call hal_rtc_set_alarm_callback() to register a callback function and call hal_rtc_enable_alarm() to enable the RTC alarm notification. When the RTC current time reaches the RTC alarm time, the callback function you registered will be executed. The alarm notification can be disabled by using hal_rtc_disable_alarm() function, if it's no longer required.
Support store data during power off.
There are several spare registers in the RTC to store data that are not cleared during a power off, except when the battery is removed.

Software architecture of RTC

The user needs to call hal_rtc_init() to initialize the RTC hardware before using the RTC service. The user can set and get the current time or RTC alarm time at any time. RTC supports two notifications, the RTC current time change notification and the alarm notification. The user can use hal_rtc_set_time_callback() and hal_rtc_set_alarm_callback() respectively, to register callbacks for these two RTC notifications.

How to use this driver

Set the RTC current time.
- Step 1. Call hal_rtc_init() to initialize the RTC hardware, if it hasn't been called after the power went on.
- Step 2. Call hal_rtc_set_time() to set the RTC current time.
- sample code: Note: the base year of RTC should be 2000, there will be leap year problem if a value other than 2000 is used.
  #define BASE_YEAR 2000
  set_current_time(uint16_t year, uint8_t mon, uint8_t day, uint8_t hour, uint8_t min, uint8_t sec) {
  hal_rtc_time_t time;
  if(HAL_RTC_STATUS_OK != hal_rtc_init()) {
  // Error handler
  }
  // The user has to define the base year and the RTC year is defined
  // as an offset. For example, define the base year as 2000 and assign 15 to the RTC year to represent the year of 2015.
  time.rtc_year = year - BASE_YEAR;
  time.rtc_mon = mon;
  time.rtc_day = day;
  time.rtc_hour = hour;
  time.rtc_min = min;
  time.rtc_sec = sec;
  // Set the RTC current time.
  if(HAL_RTC_STATUS_OK != hal_rtc_set_time(&time)) {
  // error handle
  }
  }
Get the RTC current time.
- Step 1. Call hal_rtc_init() to initialize the RTC hardware if it has not been called after the power went on.
- Step 2. Call hal_rtc_get_time() to get RTC current time.
- sample code:
  #define BASE_YEAR 2000
  get_current_time(uint8_t *year, uint8_t *mon, uint8_t *day, uint8_t *hour, uint8_t *min, uint8_t *sec) {
  hal_rtc_time_t time;
  if(HAL_RTC_STATUS_OK != hal_rtc_init()) {
  // Error handler
  }
  if(HAL_RTC_STATUS_OK != hal_rtc_get_time(&time)) {
  // Error handler
  }
  // The user has to define the base year and the RTC year is defined
  // as an offset. For example, define the base year as 2000 and assign 15 to the RTC year to represent the year of 2015.
  *year = time.rtc_year + BASE_YEAR;
  *mon = time.rtc_mon;
  *day = time.rtc_day;
  *hour = time.rtc_hour;
  *min = time.rtc_min;
  *sec = time.rtc_sec;
  }
Register a user callback function to handle the RTC current time change.
- Step 1. Call hal_rtc_init() to initialize the RTC hardware if it has not been called after the power went on.
- Step 2. Call hal_rtc_set_time_callback() to register a user callback function to handle the RTC current time change, then when a specific RTC current time change occurs, the callback function is executed in an interrupt service routine.
- Step 3. Call hal_rtc_set_time_notification_period() to set a specific RTC current time change notification period.
- sample code:
  uint32_t g_user_data;
  set_time_notification_period(hal_rtc_time_notification_period_t period) {
  if(HAL_RTC_STATUS_OK != hal_rtc_init()) {
  // Error handler
  }
  // Register a user callback function to handle the RTC current time change.
  if(HAL_RTC_STATUS_OK != hal_rtc_set_time_callback(time_change_cb, &g_user_data)) {
  // Error handler
  }
  // Set a specific RTC current time change notification period.
  if(HAL_RTC_STATUS_OK != hal_rtc_set_time_notification_period(period)) {
  // Error handler
  }
  }

  void time_change_cb(void *user_data)
  {
  // In this case, *user_data is g_user_data.
  // Apply the RTC functionality, for example, get the RTC current time and update it on the user interface.
  // Please note, that this callback runs in an interrupt service routine.
  }
Set the RTC alarm time.
- Step 1. Call hal_rtc_init() to initialize the RTC hardware if it has not been called after the power went on.
- Step 2. Call hal_rtc_set_time() to set the RTC alarm time.
- sample code:
  #define BASE_YEAR 2000
  set_alarm_time(uint16_t year, uint8_t mon, uint8_t day, uint8_t hour, uint8_t min, uint8_t sec) {
  hal_rtc_time_t alarm;
  if(HAL_RTC_STATUS_OK != hal_rtc_init()) {
  // Error handler
  }
  // The user has to define the base year and the RTC year is defined
  // as an offset. For example, define the base year as 2000 and assign 15 to the RTC year to represent the year of 2015.
  alarm.rtc_year = year - BASE_YEAR;
  alarm.rtc_mon = mon;
  alarm.rtc_day = day;
  alarm.rtc_hour = hour;
  alarm.rtc_min = min;
  alarm.rtc_sec = sec;
  // Set the RTC alarm time.
  if(HAL_RTC_STATUS_OK != hal_rtc_set_alarm(&alarm)) {
  // Error handler
  }
  }
Get the RTC alarm time.
- Step 1. Call hal_rtc_init() to initialize the RTC hardware if it has not been called after the power went on.
- Step 2. Call hal_rtc_get_alarm() to get the RTC alarm time.
- sample code:
  get_alarm_time(uint8_t *year, uint8_t *mon, uint8_t *day, uint8_t *hour, uint8_t *min, uint8_t *sec) {
  hal_rtc_time_t alarm;
  if(HAL_RTC_STATUS_OK != hal_rtc_init()) {
  // Error handler
  }
  if(HAL_RTC_STATUS_OK != hal_rtc_get_time(&alarm)) {
  // Error handler
  }
  // The user has to define the base year and the RTC year is defined
  // as an offset. For example, define the base year as 2000 and assign 15 to the RTC year to represent the year of 2015.
  *year = time.rtc_year + BASE_YEAR;
  *mon = alarm.rtc_mon;
  *day = alarm.rtc_day;
  *hour = alarm.rtc_hour;
  *min = alarm.rtc_min;
  *sec = alarm.rtc_sec;
  }
Register a user callback function to handle the RTC alarm.
- Step 1. Call hal_rtc_init() to initialize the RTC hardware if it has not been called after the power went on.
- Step 2. Call hal_rtc_set_alarm_callback() to register a user callback function to handle the RTC alarm.
- Step 3. Call hal_rtc_enable_alarm() to enable an alarm notification. A callback function is triggered in an interrupt service routine if an alarm notification is received.
- sample code:
  uint32_t g_user_data;
  set_alarm_handle_cb(hal_rtc_time_notification_period_t period) {
  if(HAL_RTC_STATUS_OK != hal_rtc_init()) {
  // Error handler
  }
  // Register a callback function to handle the RTC alarm.
  if(HAL_RTC_STATUS_OK != hal_rtc_set_alarm_callback(alarm_handle_cb, &g_user_data)) {
  // Error handler
  }
  // Enable an alarm notification.
  if(HAL_RTC_STATUS_OK != hal_rtc_enable_alarm()) {
  // Error handler
  }
  }

  void alarm_handle_cb(void *user_data)
  {
  // In this case, *user_data is g_user_data.
  // Apply the RTC functionality, for example, get the RTC current time and update it on the user interface.
  // Please note, that this callback runs in an interrupt service routine.
  }

Functions
hal_rtc_status_t	hal_rtc_init (void)
	This function initializes the RTC module. More...

hal_rtc_status_t	hal_rtc_deinit (void)
	This function deinitializes the RTC module. More...

hal_rtc_status_t	hal_rtc_set_time (const hal_rtc_time_t *time)
	This function sets the RTC current time. More...

hal_rtc_status_t	hal_rtc_get_time (hal_rtc_time_t *time)
	This function gets the RTC current time. More...

hal_rtc_status_t	hal_rtc_set_time_notification_period (hal_rtc_time_notification_period_t period)
	This function sets the RTC current time change notification period. More...

hal_rtc_status_t	hal_rtc_set_alarm (const hal_rtc_time_t *time)
	This function sets the RTC alarm time. More...

hal_rtc_status_t	hal_rtc_get_alarm (hal_rtc_time_t *time)
	This function gets the RTC alarm time. More...

hal_rtc_status_t	hal_rtc_enable_alarm (void)
	This function enables an alarm. More...

hal_rtc_status_t	hal_rtc_disable_alarm (void)
	This function disables an alarm. More...

hal_rtc_status_t	hal_rtc_set_time_callback (hal_rtc_time_callback_t callback_function, void *user_data)
	This function sets the RTC time notification callback, and the callback execution period is set by hal_rtc_set_time_notification_period(). More...

hal_rtc_status_t	hal_rtc_set_alarm_callback (const hal_rtc_alarm_callback_t callback_function, void *user_data)
	This function sets the alarm callback. More...

hal_rtc_status_t	hal_rtc_set_one_shot_calibration (int16_t ticks)
	This function sets the tick value that will be adjusted to the RTC current time. More...

hal_rtc_status_t	hal_rtc_get_one_shot_calibration (int16_t *ticks)
	This function gets the tick value that will be adjusted to the RTC current time. More...

hal_rtc_status_t	hal_rtc_set_repeat_calibration (int16_t ticks_per_8_seconds)
	This function sets the ticks that are periodically adjusted to the RTC current time per 8 seconds. More...

hal_rtc_status_t	hal_rtc_get_repeat_calibration (int16_t *ticks_per_8_seconds)
	This function gets the ticks that are periodically adjusted to the RTC current time per 8 seconds. More...

hal_rtc_status_t	hal_rtc_set_data (uint16_t offset, const char *buf, uint16_t len)
	This function stores data to the RTC registers that won't be cleared even if the system power is off, except when the battery is removed. More...

hal_rtc_status_t	hal_rtc_get_data (uint16_t offset, char *buf, uint16_t len)
	This function reads data from the RTC registers that won't be cleared even if the system power is off, except when the battery is removed. More...

hal_rtc_status_t	hal_rtc_clear_data (uint16_t offset, uint16_t len)
	This function stores zero to the RTC registers that won't be cleared even if the system power is off, except when the battery is removed. More...

hal_rtc_status_t	hal_rtc_get_f32k_frequency (uint32_t *frequency)
	This function gets the frequency value of 32.768kHz clock source, unit is in Hz. More...

Modules
	Define

	Enum

	Struct

	Typedef

Function Documentation

hal_rtc_status_t hal_rtc_clear_data	(	uint16_t	offset,
		uint16_t	len
	)

This function stores zero to the RTC registers that won't be cleared even if the system power is off, except when the battery is removed.

Note, the size of the backup date is HAL_RTC_BACKUP_BYTE_NUM_MAX bytes.

Parameters

[in]	offset	is the position of RTC spare registers to store data. The unit is in bytes.
[in]	len	is the datalength read from the RTC spare registers. The unit is in bytes.

Returns: HAL_RTC_STATUS_ERROR means the RTC hardware isn't ready for use. HAL_RTC_STATUS_OK, the operation completed successfully.

See also: hal_rtc_set_data(), hal_rtc_get_data().

Example: 1 // Set the RTC spare registers (bytes 2 to 4) with zeros.
2 if(HAL_RTC_STATUS_OK != hal_rtc_clear_data(2, 3)) {
3 // Error handler
4 }

hal_rtc_status_t hal_rtc_deinit ( void )

This function deinitializes the RTC module.

Returns: HAL_RTC_STATUS_OK, the operation completed successfully.

hal_rtc_status_t hal_rtc_disable_alarm ( void )

This function disables an alarm.

Call this function if the alarm notification is no longer required.

Returns: HAL_RTC_STATUS_OK, the operation completed successfully.

hal_rtc_status_t hal_rtc_enable_alarm ( void )

This function enables an alarm.

Returns: HAL_RTC_STATUS_OK, the operation completed successfully.

Example: Please refer to "Register a user callback function for handling alarm" in How to use this driver.

hal_rtc_status_t hal_rtc_get_alarm ( hal_rtc_time_t * time )

This function gets the RTC alarm time.

Parameters

[out] time is a pointer to the hal_rtc_time_t structure to store the date and time settings received from the RTC alarm time.

Returns: HAL_RTC_STATUS_OK, the operation completed successfully.

Example: Please refer to "Get RTC alarm time" in How to use this driver.

hal_rtc_status_t hal_rtc_get_data	(	uint16_t	offset,
		char *	buf,
		uint16_t	len
	)

This function reads data from the RTC registers that won't be cleared even if the system power is off, except when the battery is removed.

Note, the size of the backup data is HAL_RTC_BACKUP_BYTE_NUM_MAX bytes.

Parameters

[in]	offset	is the position of RTC spare registers to store data. The unit is in bytes.
[in]	buf	is the address of buffer to store the data received from the RTC spare registers.
[in]	len	is the datalength read from the RTC spare registers. The unit is in bytes.

Returns: HAL_RTC_STATUS_ERROR means the RTC hardware isn't ready for use. HAL_RTC_STATUS_OK, the operation completed successfully.

See also: hal_rtc_set_data(), hal_rtc_clear_data().

Example: 1 // Read 3 bytes from the RTC spare registers byte 2~4 and store the 3 bytes data to buf
2 if(HAL_RTC_STATUS_OK != hal_rtc_get_data(2, buf, 3)) {
3 // Error handler
4 }

hal_rtc_status_t hal_rtc_get_f32k_frequency ( uint32_t * frequency )

This function gets the frequency value of 32.768kHz clock source, unit is in Hz.

Parameters

[in] frequency is a pointer to store the frequency.

Returns: HAL_RTC_STATUS_OK, the operation completed successfully.

hal_rtc_status_t hal_rtc_get_one_shot_calibration ( int16_t * ticks )

This function gets the tick value that will be adjusted to the RTC current time.

Note, ticks will be equal to zero after executing this function if one shot calibration is finished.

Parameters

[in] ticks is the ticks that are adjusted to the RTC current time. The valid value is in a range from -2048(-62.5ms) to 2045(62.4ms). The unit is about 30.52us (1s/32768).

Returns: HAL_RTC_STATUS_OK, the operation completed successfully.

See also: hal_rtc_set_one_shot_calibration()

hal_rtc_status_t hal_rtc_get_repeat_calibration ( int16_t * ticks_per_8_seconds )

This function gets the ticks that are periodically adjusted to the RTC current time per 8 seconds.

Parameters

[in] ticks_per_8_seconds is the ticks that are adjusted to the RTC current time per 8 seconds. The valid value is in a range from -8192(-31.25ms) to 8191(31.246ms). The unit is about 3.81us (1s/32768/8).

Returns: HAL_RTC_STATUS_OK, the operation completed successfully.

See also: hal_rtc_set_repeat_calibration().

hal_rtc_status_t hal_rtc_get_time ( hal_rtc_time_t * time )

This function gets the RTC current time.

Parameters

[out] time is a pointer to the hal_rtc_time_t structure to store the date and time settings received from the RTC current time.

Returns: HAL_RTC_STATUS_OK, the operation completed successfully.

Example: Please refer to "Get RTC current time" in How to use this driver.

hal_rtc_status_t hal_rtc_init ( void )

This function initializes the RTC module.

This function must be called once the power is on and before using the RTC service.

Returns: HAL_RTC_STATUS_OK, the operation completed successfully.

hal_rtc_status_t hal_rtc_set_alarm ( const hal_rtc_time_t * time )

This function sets the RTC alarm time.

Parameters

[in] time is a pointer to the hal_rtc_time_t structure that contains the date and time settings to configure the RTC alarm time.

Returns: HAL_RTC_STATUS_INVALID_PARAM, an invalid alarm time parameter is given. HAL_RTC_STATUS_OK, the operation completed successfully.

Example: Please refer to "Set RTC current time" in How to use this driver.

hal_rtc_status_t hal_rtc_set_alarm_callback	(	const hal_rtc_alarm_callback_t	callback_function,
		void *	user_data
	)

This function sets the alarm callback.

This callback is executed if the RTC current and alarm times are the same.

Parameters

[in]	callback_function	is the user-defined callback function.
[in]	user_data	is a pointer to the data assigned to callback function.

Returns: HAL_RTC_STATUS_OK, the operation completed successfully.

See also: hal_rtc_set_alarm(), hal_rtc_get_alarm(), hal_rtc_enable_alarm() and hal_rtc_disable_alarm()

Example: Please refer to "Register a user callback function for handling alarm" in How to use this driver.

hal_rtc_status_t hal_rtc_set_data	(	uint16_t	offset,
		const char *	buf,
		uint16_t	len
	)

This function stores data to the RTC registers that won't be cleared even if the system power is off, except when the battery is removed.

Note, the size of the backup date is HAL_RTC_BACKUP_BYTE_NUM_MAX bytes.

Parameters

[in]	offset	is the position of RTC spare registers to store data. The unit is in bytes.
[in]	buf	is the address of buffer to store the data write to the RTC spare registers.
[in]	len	is the datalength stored in the RTC spare registers. The unit is in bytes.

Returns: HAL_RTC_STATUS_ERROR means the RTC hardware isn't ready for use. HAL_RTC_STATUS_OK, the operation completed successfully.

See also: hal_rtc_get_data(), hal_rtc_clear_data().

Example: 1 // Write 3 bytes from buf to RTC spare registers, bytes 2 to 4.
2 if(HAL_RTC_STATUS_OK != hal_rtc_set_data(2, buf, 3)) {
3 // Error handler
4 }

hal_rtc_status_t hal_rtc_set_one_shot_calibration ( int16_t ticks )

This function sets the tick value that will be adjusted to the RTC current time.

Note, this function should be executed only once per second.

Parameters

[in] ticks is the ticks that are adjusted to the RTC current time. The valid value is in a range from -2048(-62.5ms) to 2045(62.4ms). The unit is about 30.52us (1s/32768).

Returns: HAL_RTC_STATUS_OK, the operation completed successfully.

See also: hal_rtc_get_one_shot_calibration()

hal_rtc_status_t hal_rtc_set_repeat_calibration ( int16_t ticks_per_8_seconds )

This function sets the ticks that are periodically adjusted to the RTC current time per 8 seconds.

Parameters

[in] ticks_per_8_seconds is the ticks that are adjusted to the RTC current time per 8 seconds. The valid value is in a range from -8192(-31.25ms) to 8191(31.246ms). The unit is about 3.81us (1s/32768/8).

Returns: HAL_RTC_STATUS_OK, the operation completed successfully.

See also: hal_rtc_get_repeat_calibration()

hal_rtc_status_t hal_rtc_set_time ( const hal_rtc_time_t * time )

This function sets the RTC current time.

Parameters

[in] time is a pointer to the hal_rtc_time_t structure that contains the date and time settings for the RTC current time.

Returns: HAL_RTC_STATUS_INVALID_PARAM, an invalid time parameter is given. HAL_RTC_STATUS_OK, the operation completed successfully.

Example: Please refer to "Set RTC current time" in How to use this driver.

hal_rtc_status_t hal_rtc_set_time_callback	(	hal_rtc_time_callback_t	callback_function,
		void *	user_data
	)

This function sets the RTC time notification callback, and the callback execution period is set by hal_rtc_set_time_notification_period().

Parameters

[in]	callback_function	is a user-defined callback function.
[in]	user_data	is a pointer to the data assigned to callback function.

Returns: HAL_RTC_STATUS_OK, the operation completed successfully.

See also: hal_rtc_set_time_notification_period()

Example: Please refer to "Set RTC current time" in How to use this driver.

hal_rtc_status_t hal_rtc_set_time_notification_period ( hal_rtc_time_notification_period_t period )

This function sets the RTC current time change notification period.

The time notification callback function is different from a common timer or alarm callback function. The common timer or alarm callback function is only called once at a specific time, but the time notification callback function is called anytime a specific time notification condition is met. For example, the callback function runs for each second, if HAL_RTC_TIME_NOTIFICATION_EVERY_SECOND is the parameter.

Parameters

[in] period is the expected time for the RTC current time change notification period.

Returns: HAL_RTC_STATUS_INVALID_PARAM, an invalid period parameter is given. HAL_RTC_STATUS_OK, the operation completed successfully.

See also: hal_rtc_set_time_callback()

Example: Please refer to "Register a user callback function for handling RTC current time change" in How to use this driver.

Overview

Terms and acronyms

Supported features

Software architecture of RTC

How to use this driver

Functions

Modules

Function Documentation
